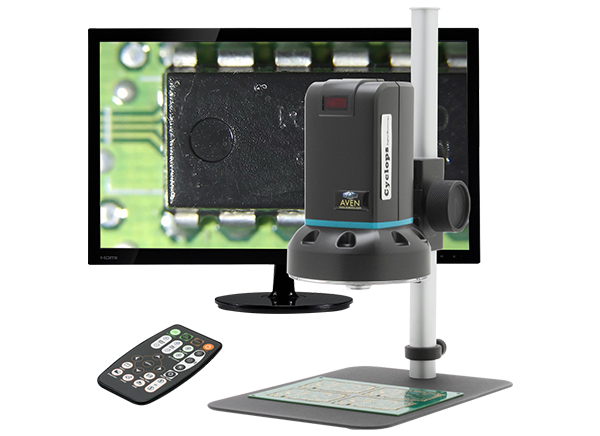

Aven Cyclops 3.0 Digital Microscope

Aven Cyclops 3.0 Digital Microscope combines ease-of-use with advanced digital microscope technology in one compact device. The Cyclops 3.0 is an innovative digital microscope that connects directly to an HD monitor as well as a computer, or to both simultaneously with magnification ranges up to 140x. This microscope features built-in HDMI and USB outputs with 4x objective lens and image capture software that includes measurement and editing tools. In addition, the software provides a Compare mode, Measurement mode, and Device Control mode. Aven Cyclops 3.0 Digital Microscope increases accuracy and productivity while easing eye strain and user fatigue.


  • Advanced measurement software included for PC mode (via download)
  • Crystal-clear 1080p full HD
  • USB C - High-speed transmission
  • Built-in 30 LED ring light
  • Includes measurement software
  • Continuous calibration
  • USB 3.0 output
  • HDMI output


  • Package Contents
    • Cyclops 3.0
    • Standard stand
    • USB cable
    • HDMI cable
    • Power supply
    • IR remote control
    • Calibrator
    • 4x objective lens
    • White balance card
    • User's guide
  • Magnification 13x to 140x magnification
  • 1920 x 1080 effective pixels
  • 3.8mm to 40mm field of view
  • 22mm to 214mm working distance
  • 1.6A power consumption
  • -5°C to +50°C operating temperature range
