Central Semiconductor CMLDM7 Small Signal N & P-Channel MOSFET

Central Semiconductor CMLDM7 Small Signal N and P-Channel MOSFET consist of complementary N-Channel and P-Channel enhancement-mode silicon MOSFETs designed for high-speed pulsed amplifier and driver applications. These MOSFETs offer very low rDS(ON) and low threshold voltage. The Central Semiconductor CMLDM7484 Small Signal N and P-Channel MOSFET feature the small, SOT-563 surface mount package.

Features

  • Complementary N-Channel and P-Channel enhancement-mode silicon MOSFETs
  • Very low drain-source on state resistance (rDS(ON))
  • Low threshold voltage
  • SOT-563 surface mount package
  • -65°C to 150°C operating and storage junction temperature range

Applications

  • High-speed pulsed amplifiers
  • High-speed pulsed drivers

Associated Product

Central Semiconductor CxxDM Surface-Mount Enhancement-Mode MOSFETs

Designed for high-speed pulsed amplifier & driver applications.

Learn MoreCentral Semiconductor CxxDM Surface-Mount Enhancement-Mode MOSFETs について View ProductsCentral Semiconductor CxxDM Surface-Mount Enhancement-Mode MOSFETs に関連

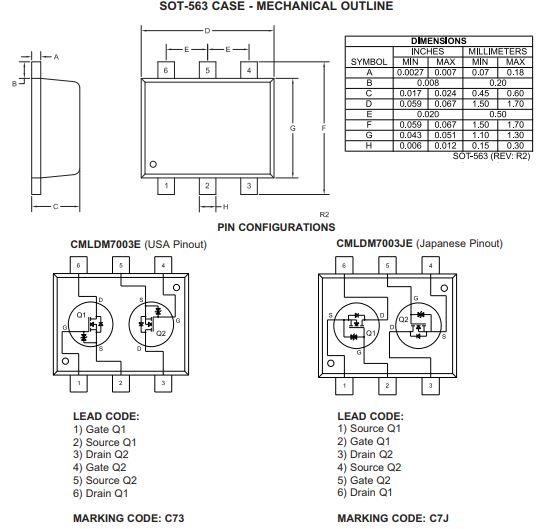

Mechanical Outline Drawings

Mechanical Drawing - Central Semiconductor CMLDM7 Small Signal N & P-Channel MOSFET
