E-Switch EGJ1210 Slide Switches
E-Switch EGJ1210 Slide Switches feature an SPDT contact arrangement that requires 250 grams of force to actuate. These switches offer a contact rating of 300mA at 24VDC, 1.6mm of travel, 10,000 cycles of mechanical life, and 30mΩ maximum contact resistance. The EGJ1210 slide switches have a dielectric strength of 500VAC for 1 minute and operate within the -40°C to 85°C temperature range. Typical applications include telecommunication, computer peripherals, audio/visual, medical equipment, consumer electronics, and instrumentation.
Features
- Surface mount and through Hole PC board design
- 1.60mm travel
- Compact design
- 250gram force
- SPDT function
Specifications
- 300mA contact rating @ 24VDC
- 2,000 cycles of electrical life
- 10,000 cycles mechanical life
- 30mΩ maximum contact resistance
- 10,000MΩ minimum insulation resistance @ 500VDC
- 500VAC dielectric strength for 1 minute
- -40°C to 85°C operating temperature range
- -40°C to 85°C storage temperature range
- SPDT contact arrangement
Applications
- Computer peripherals
- Audio/visual
- Telecommunication
- Medical equipment
- Consumer electronics
- Instrumentation
EGJ1210 Applications

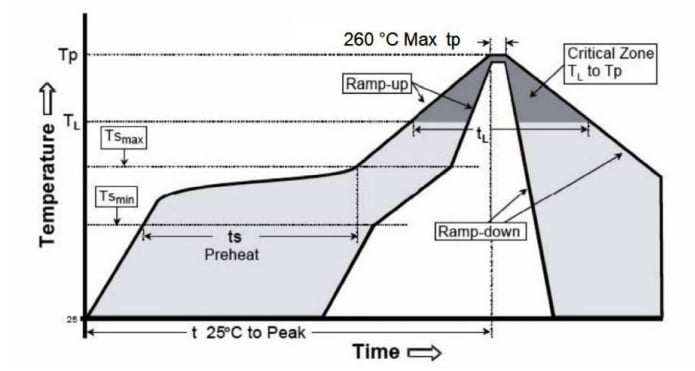

Performance Graph
Additional Resource
