Honeywell MPR MicroPressureセンサ
Honeywell MPR MicroPressureセンサは、5mm x 5mmピエゾ抵抗シリコン圧力センサで、指定されたフルスケールの圧力スパンおよび温度範囲で圧力を読み取るためのデジタル出力を提供します。Honeywell MPRは、オンボードアプリケーション特有のIC（ASIC）を使用してセンサオフセット、感度、温度効果、非直線性特定の温度範囲で較正および補償されます。MPR MicroPressureセンサは、大量の医療（消費者および非消費者）機器ならびに商業用機器、工業/HVACアプリケーションの要件を満たしています。
特徴
- 5mm x 5mm (0.20" x 0.20") package footprint
- Calibrated and compensated
- 60mbar to 2.5bar, 6kPa to 250kPa, 1psi to 30psi
- 24-bit digital I2C or SPI-compatible output
- Interface ready for Internet of Things (IoT)
- Ultra-low power consumption (as low as 0.01mW typical average power, 1Hz measurement frequency)
- Stainless steel pressure port
- Wide pressure ranges simplify use
- Small form factor
- Compatible with a variety of liquid media
- Absolute and gauge pressure types
- Cost-effective, higher volume solution with configurable options
- As low as ±1.25% FSS total error band after user auto-zero
- 0°C to +50°C compensated temperature range
- REACH and RoHS compliant
- Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1
- Select sensors available on breakout board for easy evaluation and testing
アプリケーション
- Consumer medical
- Non-invasive blood pressure monitoring
- Negative-pressure wound therapy
- Mobile oxygen concentrators
- Airflow monitors
- Non-consumer medical
- Invasive blood pressure monitors
- Ambulatory blood pressure measurement
- Industrial
- Air braking systems
- Gas and water meters
- Consumer
- Coffee machines
- Humidifiers
ビデオ
I2C Bus Configuration

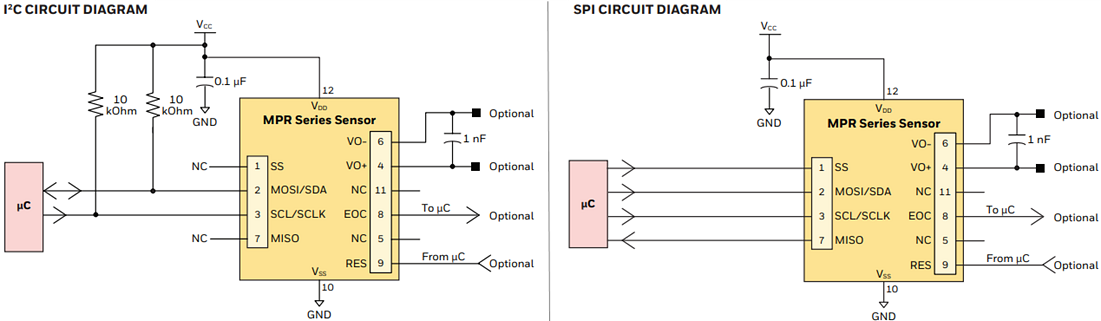

I2C & SPI Reference Circuits
Development Tools
Honeywell MPR MicroPressure Evaluation Boards
Compatible with a variety of liquid media and offers 24-bit digital I2C- or SPI-compatible output.
Honeywell SEK002 Sensor Evaluation Kit
Demonstrates and evaluates multiple series of Honeywell sensors.
Related Sensors
Honeywell Board Mount Pressure Sensors
Compensated/amplified, compensated/unamplified, and uncompensated/unamplified pressure sensors.
