IDEC SX8R Bus Coupler Modules
IDEC SX8R Bus Coupler Modules feature a 24VDC power rating, an IP20 protection rating, and an operating temperature range of -25°C to +65°C. These remote I/O modules speed up the process from model selection to startup, and the compact, space-saving design allows more devices to connect, increasing efficiency. SX8R modules are compatible with EtherNet/IP, Modbus TCP, and CC-Link IE Field Basic communication protocols. IDEC SX8R Bus Coupler Modules are available with push-in or screw terminals and can support up to 15 expansion I/O modules.
Features
- Push-in or screw terminals
- Compact, space-saving design
- Compatible with more than 40 existing IDEC FC6A I/O modules
- Supports up to 15 expansion I/O modules
- Supports multiple protocols simultaneously
Specifications
- 24VDC voltage rating
- Ethernet Port 1
- Modbus TCP communication (server)
- EtherNet/IP communication (adapter)
- CC-Link IE field basic secondary communication (secondary station)
- Maintenance communication (server)
- Ethernet Port 2
- Maintenance communication (server)
- IP20 protection rating
- -25°C to +65°C operating temperature range
- 35A maximum inrush current
Dimensions (MM)

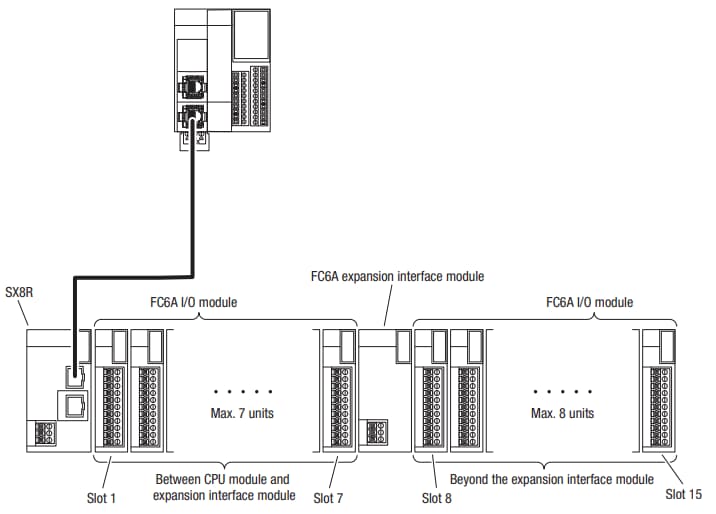

System Configuration
Graphic
Additional Resources
