JAE Electronics WP Board to Board Connectors
JAE WP Board to Board Connectors offer a range of reliable and easy to mate options for both low current signals and high current power supply. WP is a space-saving low profile solution for high-density mounting to slim, communication information devices such as mobile phones and tablets. JAE WP Board to Board Connectors include the WP6C, WP7, WP9, WP10, WP21, WP25D, WP26, WP26DK, WP27D, and WP66DK series.
Featured Series
JAE Electronics WP6C 0.4mm Pitch Board-to-Board Connectors
Low-profile, stacking-type devices with 0.4mm pitch spacing ideal for high-density mounting.
JAE Electronics WP7 Board to Board Connectors
High removal force for lower pin count versions and lower insertion force for higher pin counts.
JAE Electronics WP9 0.4mm Pitch Stacking Type B2B (FPC) Connector
0.4mm pitch, 2 rows, 0.8mm stacking height and 1.95mm depth, ideal for high-density mounting
JAE Electronics WP10 Board-to-Board Connectors
Smallest-in-class high-current compatible connector, features 10A rated current.
JAE Electronics WP21 0.35mm Board-to-Board Connectors
Features 0.35mm pitch spacing that is ideal for high-density mounting, saves 10% mounting space.

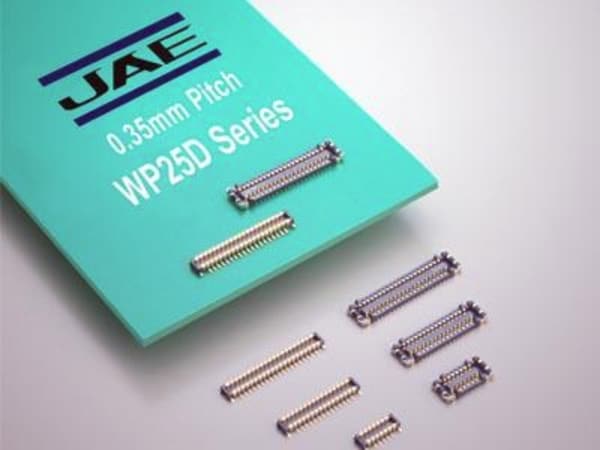

JAE Electronics WP25D 0.35mm基板対基板コネクタ
電源端子として使用できる特殊なホールドダウンを備えたスタッキングタイプのコネクタです。
JAE Electronics WP26 Connectors
Low-profile stacking board-to-board (FPC) connectors, 0.35mm pitch, 2 rows, 0.6mm stacking height.
JAE Electronics WP27Dコネクタ
薄型・小型デバイスの高密度実装に理想的です。
JAE Electronics WP66DK Board to Board Connectors
Offers an extremely compact size with a mated width of only 1.6mm, and mated height of 0.6mm.
JAE Electronics WP26DK Stacking Type Board-to-Board Connectors
Caters to small mobile devices such as smartphones, wearable devices, and tablet PCs.
