Ledil ROSE LED Lighting Lens Assemblies

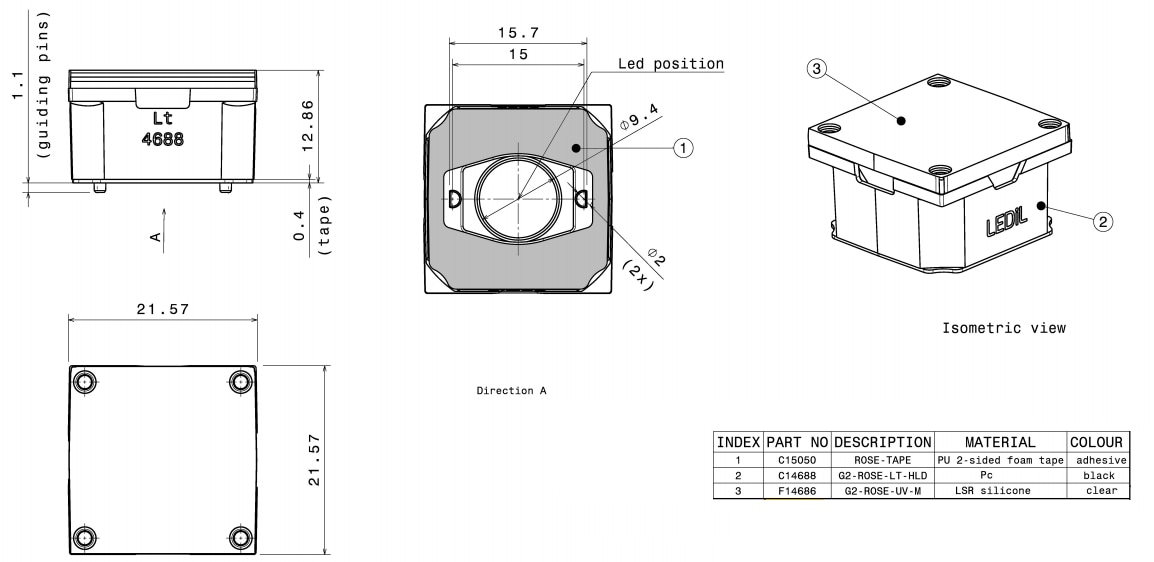

The ROSE-UV variant assemblies are made from optical grade silicone for high power UV-LEDs with a dome. This setup helps to increase optical efficiency and UV resistance of the optics considerably. These lens assemblies have been tested in heavy UV exposure over 6000 hours without any noticeable change in the transmission. The ROSE-UV LED lighting lens assemblies are available in 21.6mm x 21.6mm dimensions and with a height of 12.86mm (up to 3535 size). These lens assemblies offer substantially improved performance and durability over previous generation optics and are ideal for use in NDT and curing applications.

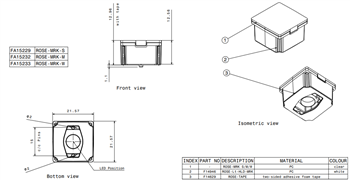

The ROSE-MRK variant assemblies provide quality lighting for the bigger LEDs. These lens assemblies come with 7070 size LED packages. Having the same outer dimensions as the previously released ROSE-products, they are compatible with numerous different lighting fixtures. Additionally, the ROSE-MRK assemblies provide an efficient and trusted portfolio to build on for upgrading or building new luminaries for larger LED packages. Typical applications include indoor lighting, general lighting, up- and downlights, and spotlights.
