Marktech Optoelectronics Short Wavelength Infrared Emitters

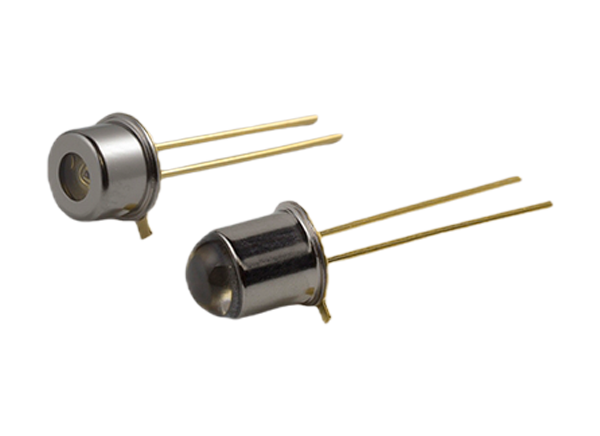

Marktech Optoelectronics Short Wavelength Infrared (SWIR) Emitters include both through-hole and surface mount packages with wavelengths from 1020nm to 1900nm. The SWIR emitters operate from 20mA to 350mA current range and are designed for high-power applications. These emitters consist of a high-output infrared die in a water-clear 5mm plastic molded package. The SWIR emitters offer high-speed light emission in ranges not easily seen by standard detectors and are ideal for material and chemical analysis. Typical applications include optical switches, optical sensors, fiber optical communication, Bioflorescence and blood chemistry analysis, night vision, safety equipment, currency validation, fiber optics, and inspection systems.
Features
- High output power
- Wide beam angle
- High reliability
- Compact
Applications
- Optical switches
- Optical sensors
- Fiber optical communication
- Bioflorescence and blood chemistry analysis
- Night vision
- Safety equipment
- Currency validation
- Fiber optics
- Inspection systems
View Results ( 46 ) Page
| 部品番号 | データシート | 波長 | ビーム角 | If - 順電流（Forward Current） | Vf - 順電圧（Forward Voltage） | 電力定格 | 最低動作温度 | 最高動作温度 | 標準パックの数量 | 取り付け様式 |
|---|---|---|---|---|---|---|---|---|---|---|
| MTSM1200MT2-BK |  |
1200 nm | 55 deg | 50 mA | 1.06 V | - 20 C | + 80 C | 100 | SMD/SMT | |
| MTSM1300MT2-BK | |
1300 nm | 55 deg | 50 mA | 1.03 V | - 20 C | + 80 C | 100 | SMD/SMT | |
| MTSM5116MT2-BK | |
1650 nm | 60 deg | 50 mA | 950 mV | - 20 C | + 80 C | 100 | SMD/SMT | |
| MTSM5115MT2-BK | |
1550 nm | 60 deg | 50 mA | 1.05 V | - 20 C | + 80 C | 100 | SMD/SMT | |
| MTE5116N5 | |
1650 nm | 5 deg | 50 mA | 950 mV | 110 mW | - 20 C | + 80 C | 1 | Through Hole |
| MTSM6114MT2-BK | |
1460 nm | 55 deg | 50 mA | 1 V | - 20 C | + 80 C | 100 | SMD/SMT | |
| MTE5116N2 | |
1650 nm | 45 deg | 50 mA | 950 mV | 110 mW | - 20 C | + 80 C | 1 | Through Hole |
| MTSM7110MT2-BK | |
1070 nm | 55 deg | 50 mA | 1.32 V | - 20 C | + 80 C | 100 | SMD/SMT | |
| MTE5010-995-IR | |
1050 nm | 45 deg | 20 mA | 1.15 V | 120 mW | - 20 C | + 80 C | 1 | SMD/SMT |
| MTE5115N5 | |
1550 nm | 5 deg | 50 mA | 1 V | 120 mW | - 20 C | + 80 C | 1 | Through Hole |
公開: 2021-04-27
| 更新済み: 2025-12-29
