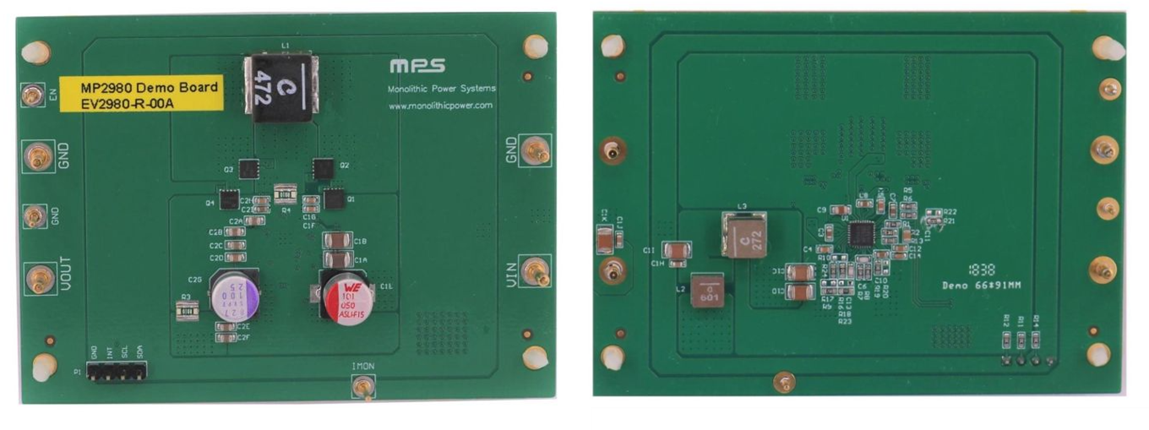

Monolithic Power Systems (MPS) EV2980-R-00A Evaluation Board
Monolithic Power Systems (MPS) EV2980-R-00A Evaluation Board is created to illustrate the capabilities of the MP2980. The MP2980 is a synchronous, four-switch buck-boost controller to support USB PD3.0 power solutions. The MPS MP2980 features hiccup OCP, hiccup OVP, programmable soft start, and programmable UVLO. The device is housed in a QFN-32 (4mm x 4mm) package.
Features
- 6V to 36V wide startup voltage range
- Flexible I2C interface control for:
- 3V to 20V output with 10mV steps
- Selectable VOUT slew rate
- Programmable constant current limit
- Output Current Monitor Function (IMON)
- Switching frequency spread spectrum for EMI optimization
- Integrated VOUT discharge function
- Selectable 200kHz, 300kHz, 400kHz, and 600kHz switching frequency
- Forced CCM operation mode
- OCP, SCP, and OVP
- Interrupt indicator for OCP, OVP, and PNG
- Available in a 9.14cm x 6.6cm size
Applications
- USB power delivery
- Industrial PC power supplies
- Super-capacitor charging
Associated Dev Tools
Monolithic Power Systems (MPS) EVKT-USBI2C-02 USB to I2C/PMBus Dongle
Required communication kit to connect MPS I2C and PMBus evaluation boards to a PC.
Monolithic Power Systems (MPS) EVKT-MP2980 コントローラ評価キット
ユーザーは、MP2980同期、4スイッチ、バックブーストコントローラを評価できます。
Associated Products
Monolithic Power Systems (MPS) MP2980 36V 昇降圧ブーストコントローラ
広いVIN 範囲でさまざまな出力電圧の安定化を図るように設計されており、高い効率性を備えています。
