Panasonic Electronic Components PAN9310 & PAN9320組み込みWi-Fiモジュール

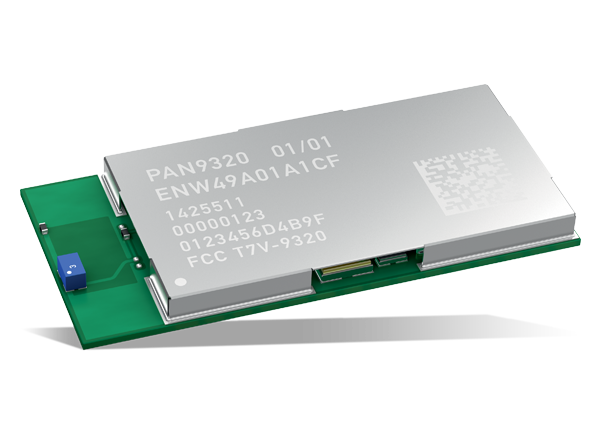

Panasonic PAN9310 & PAN9320 Embedded Wi-Fi Modules are fully embedded place-and-play modules with an integrated stack and API. This minimizes firmware development and includes a full security suite. The PAN9310 and PAN9320 are standalone 2.4GHz Wi-Fi modules that support IEEE 802.11b/g/n standards designed for applications where a small form factor and high throughput data rate is required. The PAN9310 does not have an antenna on the board.

The PAN9320 are standalone 2.4GHz Wi-Fi modules that support IEEE 802.11b/g/n standards designed for applications where a small form factor and high throughput data rate are required. They are cost-effective, power-efficient solutions for WLAN applications.

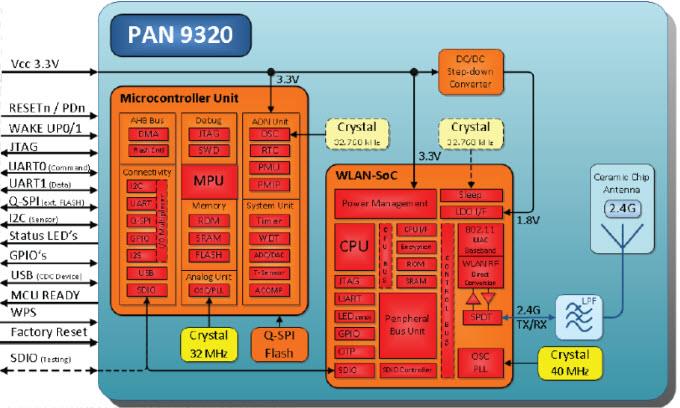

The Panasonic PAN9310 and PAN9320 combine a high-performance CPU, high-sensitivity (-98dBm) wireless radio, baseband processor, medium access controller, encryption unit, boot ROM with patching capability, internal SRAM, and in-system programmable flash memory. The PAN9310 does not have an antenna on the board. The integrated memory is available to the application to store web content such as HTML pages or image data.

特徴

Surface mount type 29.0x13.5x2.66mm³
Fully embedded Wi-Fi module with integrated MCU, radio, Wi-Fi stack, antenna, and crystals, the PAN9310 does not have an antenna on the board
Supports IEEE 802.11b/g/n, security standards WEP, WPA, WPA2, WPA2 PSK
Tx power up to +18dBm (IEEE 802.11b CCK) and 14dBm (IEEE 802.11g ODFM)
High Rx sensitivity -98dBm (IEEE 802.11b DSSS 1Mbps)
Telnet, HTTP, AJAX and JSON interfaces
Simultaneous access point and infrastructure modes
Supports TLS/SSL, HTTPS, and Wi-Fi security (WPA2) for secure data connections
Plug-n-play name services (DHCP, DNS) and custom name access

Wireless update of radio driver and MCU firmware with integrated boot loader
Marvell® 88W8782 WAN System-on-Chip (SoC) and 88MC200 (MCU) inside
Integrated, extendable 1.5MB Flash for web content and configuration file
Easy-to-use evaluation board for quick development and reduced time to market
Use of web technologies (HTML, JavaScript), no need for Wi-Fi stack implementation
Ready to use internet access (integrated email server and cloud communication client)
Getting started tutorials, libraries, and APIs
Evaluation and development software Wifigurator for Windows
