VCC LSM0805 Series SMD LEDs

VCC LSM0805 Series SMD LEDs are low profile LEDs that come in SMD0805 package (2012 metric) small footprint with 0.8mm thickness. These LEDs provide exceptional illumination due to high-performance AIGaInP and GaInP light-emitting diodes (LED) technology. The LSM0805 SMD LEDs are available in standard red, white, green, blue, and yellow colors. These rectangle flat-top LEDs offer a cost-efficient solution for low-power and compact electronic equipment designs. The LSM0805 Series LEDs furnish great design possibilities and are compatible with automatic placement equipment, and are available in automation-friendly tape and reel. VCC LSM0805 Series SMD LEDs are ideal for backlighting and indicator applications, portable consumer electronics and wearables, IoT, and medical devices due to their wide viewing angles.

Features

Small 0805 LED package (SMD0805) with exceptional illumination

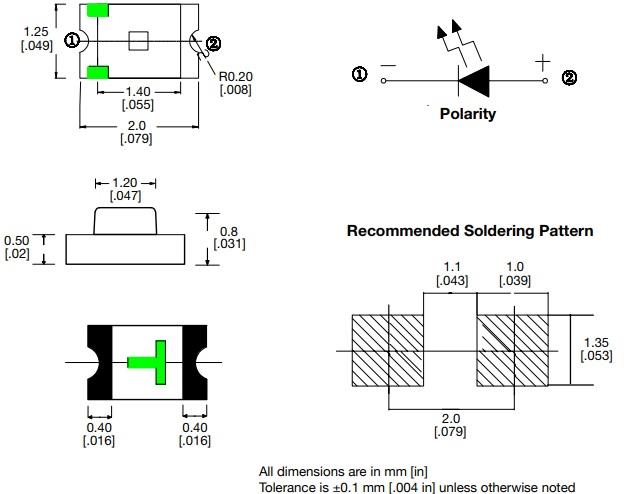

- 2.0mm x 1.25mm (2012 metric) Chip SMD LEDs
- 0.8mm thickness
Low power consumption
Rectangle flat top LED
Wide viewing angle (110° to 120°)
Top-emitting package
AIGaInP and GaInP technologies
Red, white, green, blue, and yellow single colors

Optimized light coupling by inter reflector
Package: 3000pcs / reel
Compatible with automatic placement equipment
Temperature:
- -40°C to +85°C operating temperature range
- -40°C to +100°C storage temperature range
Pb-free and compliant with RoHS and REACH
MSL3 moisture sensitive package
